Shear scraper

Doug

Doug

Loquacious
Executive Member
Joined
Aug 25, 2013
Posts
6,723
Location
In the wood shop
First Name
Take a guess

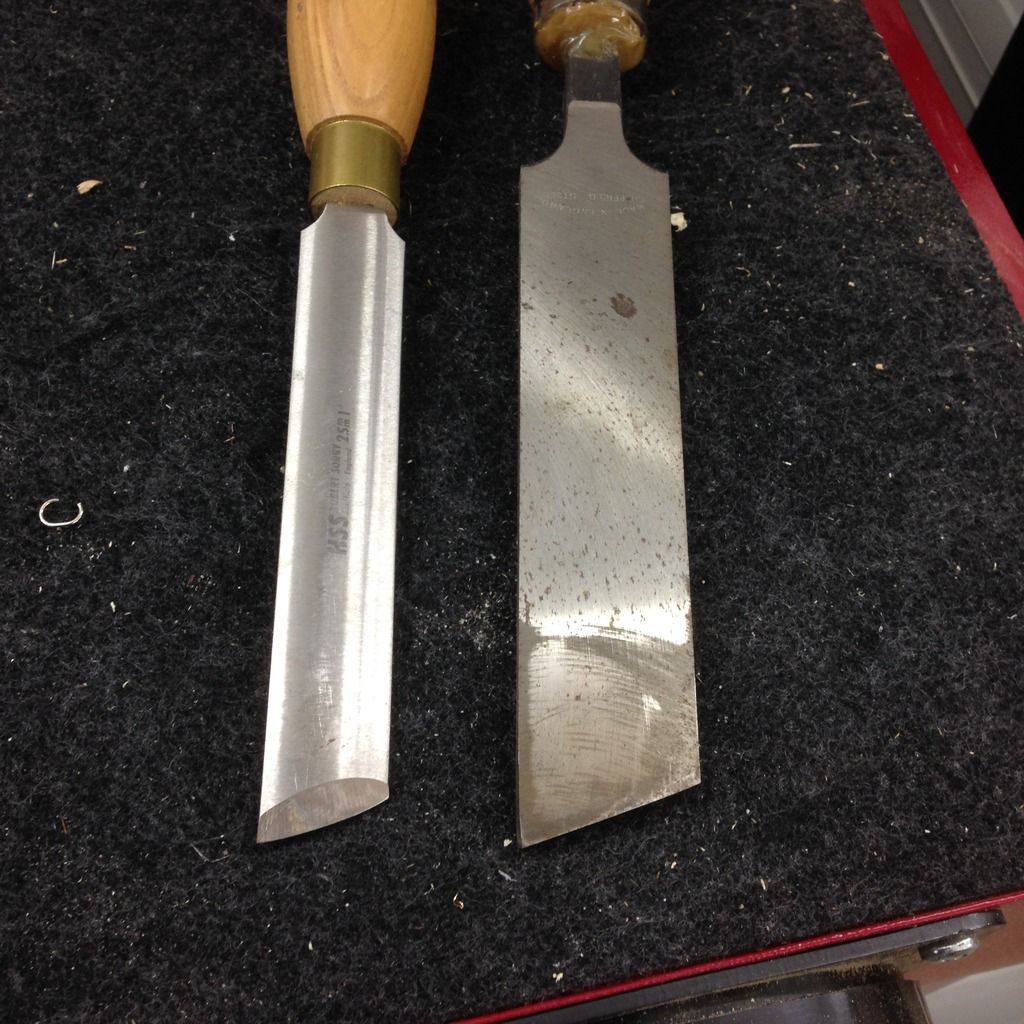

For many years I've used my skew chisel as a shear scraper but whilst sorting through some of my very old turning tools I came across a couple of big old scrapers I'd not used for years, so decided to reshape one as a shear scraper, this is the old tool shown side by side with my 1" skew.

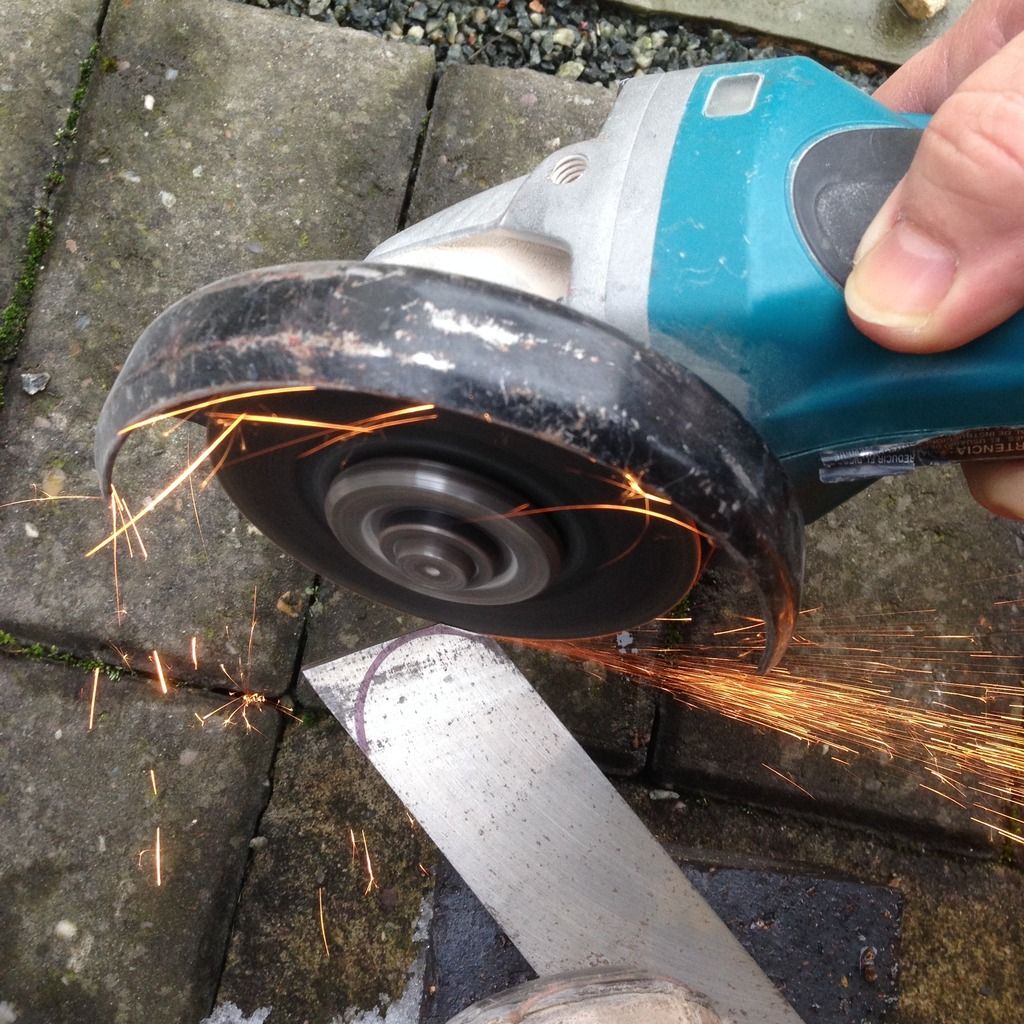

I marked up the shape I wanted & cut the waste away with a 1mm slitting blade in the grinder, as this is carbon steel I kept quenching the blade in water as I went along.

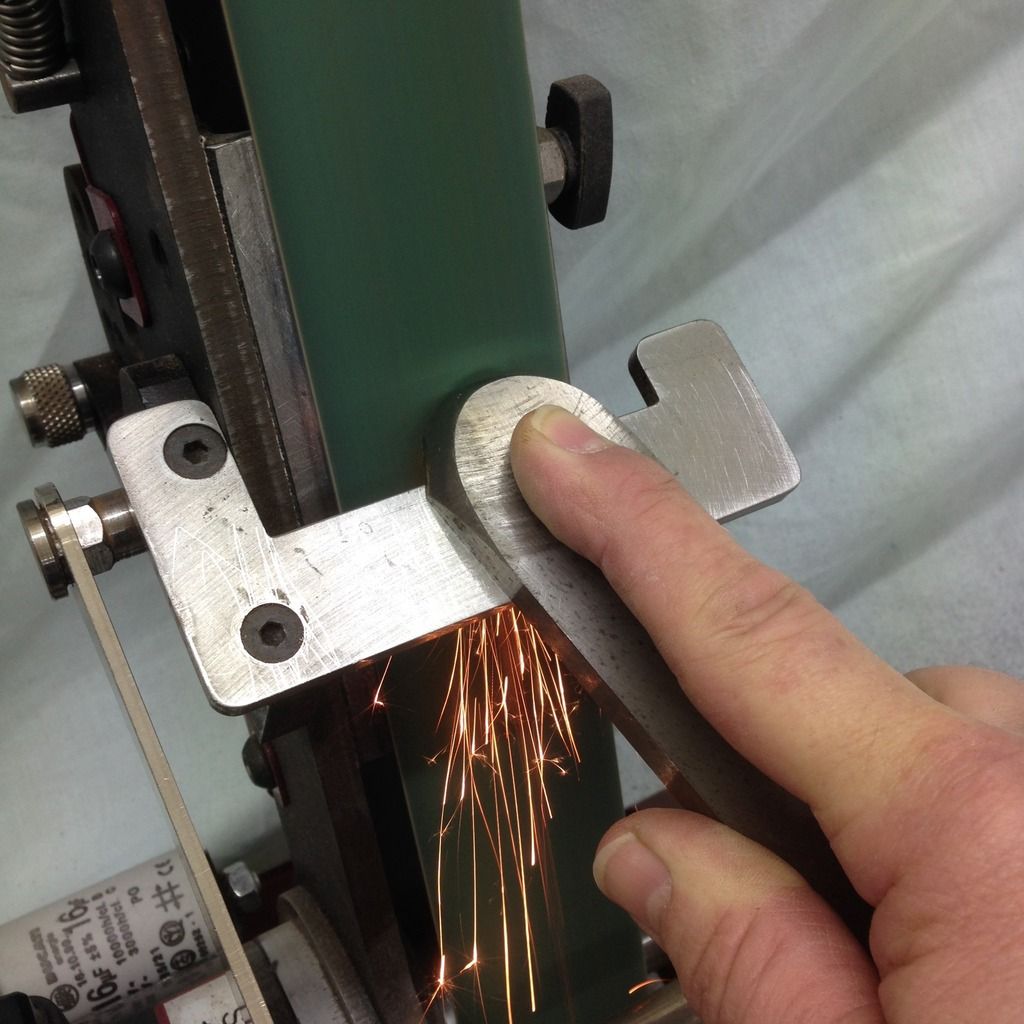

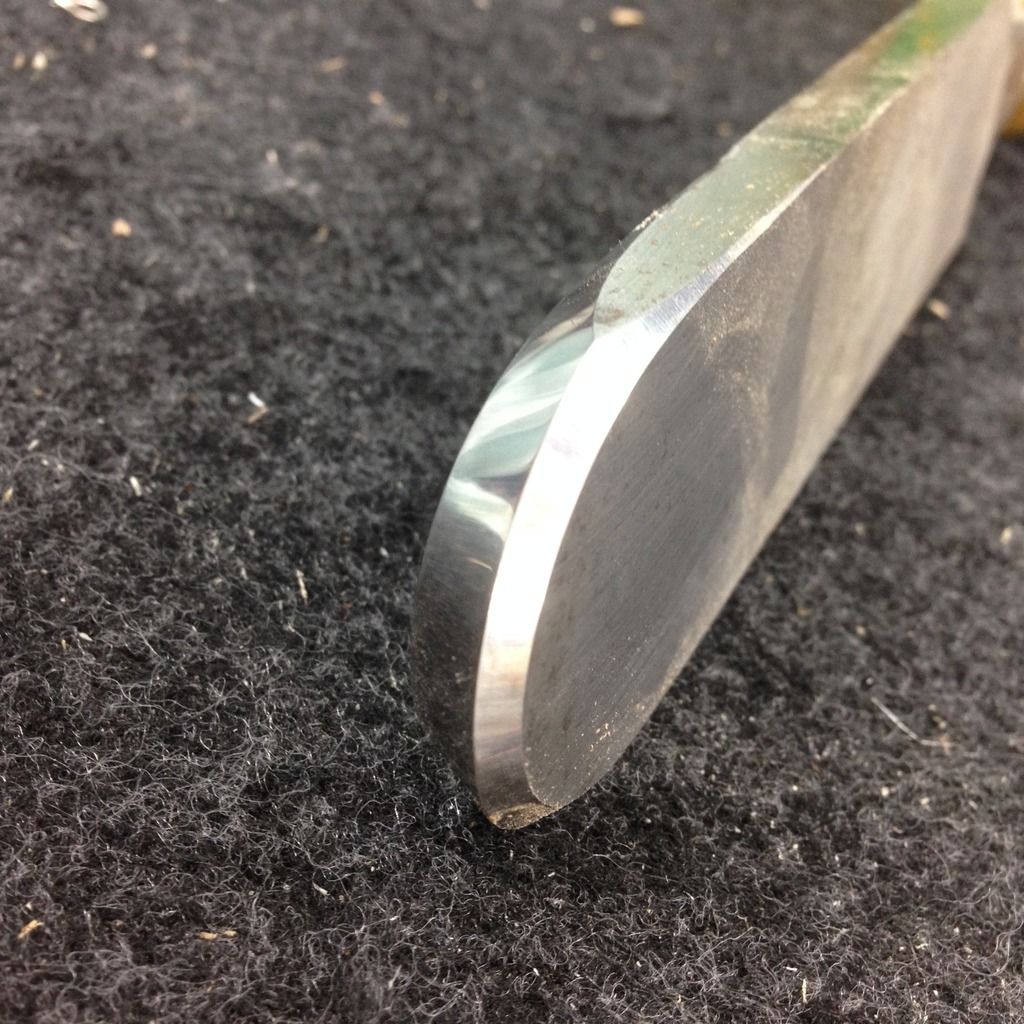

Then it was on to the proedge for final shaping.




I tried it on the walnut platter I made this afternoon but need to grind a shallower angle on the top as I wasn't completely happy with how it performed.


B

Bigblackdog

Registered
Joined
Dec 28, 2014
Posts
839
Location
Leeds
First Name
Mark
how do you sharpen a negative rake scraper- do you touch up both bevels, and does it matter which one you do first. I am using a proedge too if it makes any difference.

Doug

Doug

Loquacious
Executive Member
Joined
Aug 25, 2013
Posts
6,723
Location
In the wood shop
First Name
Take a guess
I grind the bottom angle as I want the burr facing up hill, if that makes sense. As long as you can feel a burr as you run your finger over the edge it will cut.

I did 60 degree on the bottom bevel Woody & 45 on the top, think I'd be better around 20 degree

Neil Lawton

Neil Lawton

Longlocks
Fellow
Joined
Dec 26, 2013
Posts
3,126
Location
York
First Name
Neil
I've been using one like that for a couple of years now.
Bottom grind 45, top grind 25. You just touch up the bottom grind in everyday use.

Penpal

Penpal

Grand Master
Joined
May 26, 2013
Posts
25,342
Location
Canberra AUSTRALIA
First Name
Peter
Wow Doug I have intentions to follow suit in some of my scrapers you will have saved me a real lot of grinding to acheive a useful shape using an angle grinder many thanks Doug I agree with yourself and Neil re the angles. Love your new and improved shear scraper beaut pics iI felt right there as you made it a work in progress. Thanks mate this to me is what its ALL about sharing indeed at its finest.

Peter.

Bill Mooney

Bill Mooney

Blind old git
Grand Master
Joined
Aug 16, 2014
Posts
11,215
Location
County Durham
First Name
Bill
Bigblackdog said:
how do you sharpen a negative rake scraper- do you touch up both bevels, and does it matter which one you do first. I am using a proedge too if it makes any difference.
Click to expand...
I just sharpen the bottom bevel.
It's a good save Doug. The tool is too good to be gathering dust.:thumbs:
